Egg Roll Wafer Baking Machine
Bake wafer sheets for egg rolls and other confirmed wafer products with the YN-DJ series. The machine handles the sheet-baking stage; rolling or folding is a separate downstream operation.
Applications

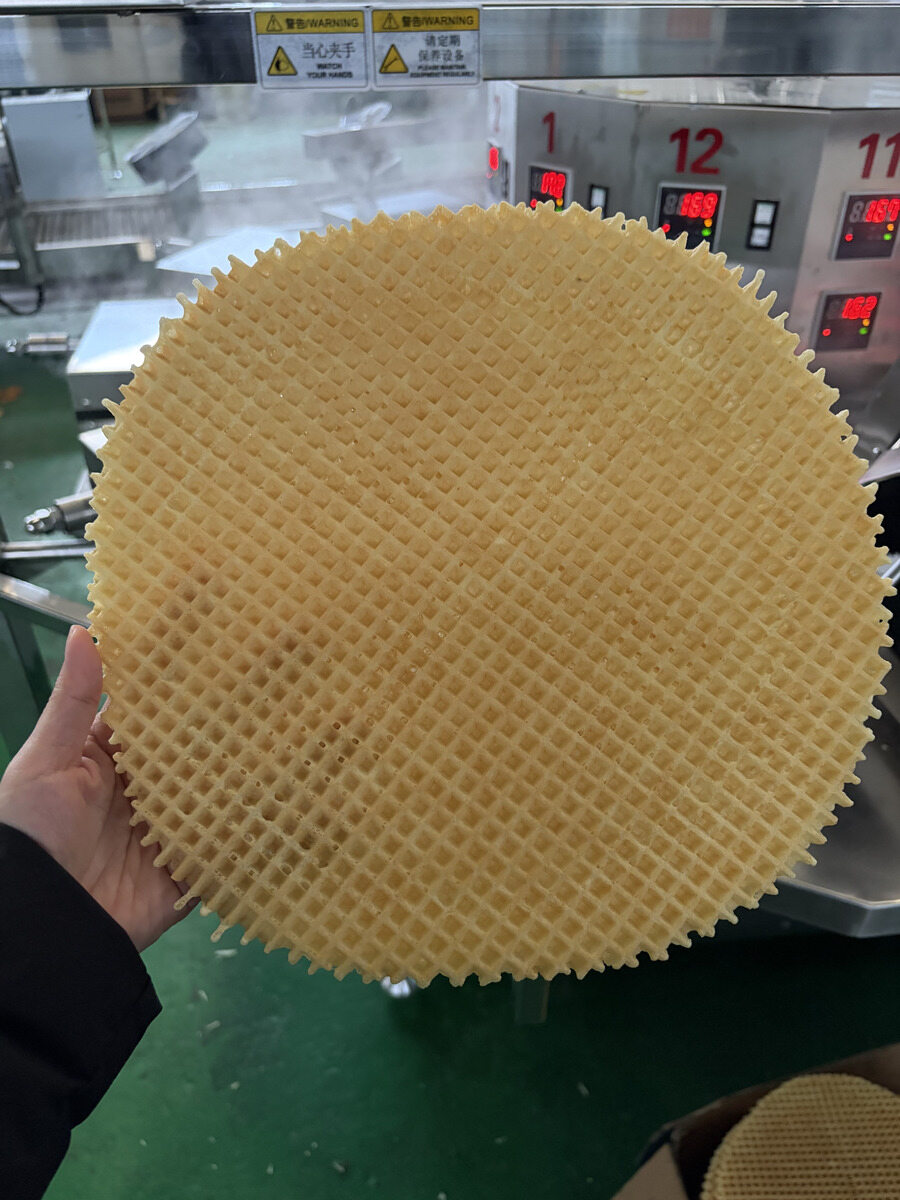

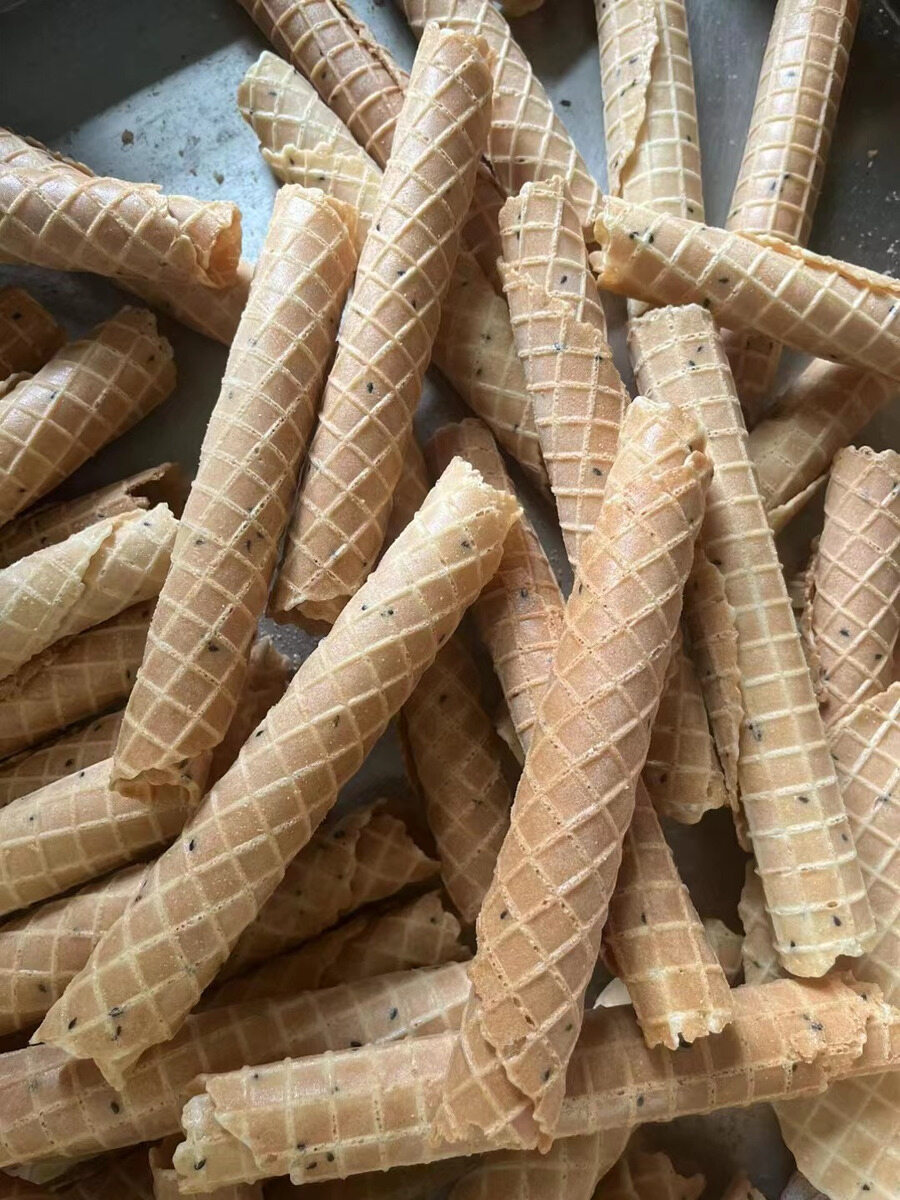

Produce wafer sheets for subsequent egg-roll rolling or other agreed wafer-sheet applications. Finished rolled wafers shown in the application photographs illustrate downstream products, not a claim that this baking machine rolls them automatically. The listed specifications apply to the regular wafer-sheet configuration.
How It Works

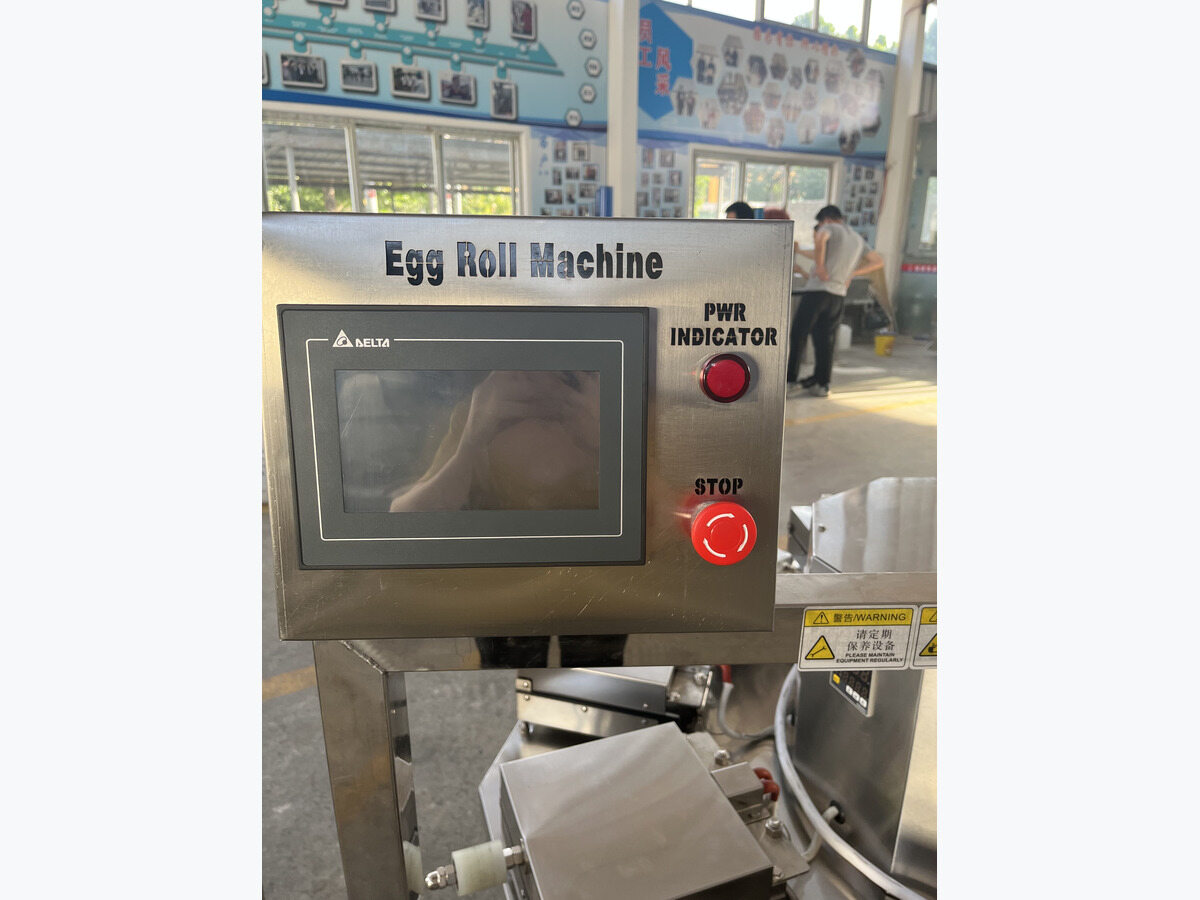

- Prepare the batter and set the baking parameters.
- The machine coordinates batter depositing, mould movement, baking and plate rotation.
- Remove the baked sheet and roll it while warm using the agreed manual or separate downstream process.
- Cool and pack the formed product using the required subsequent equipment.
Key Features
01

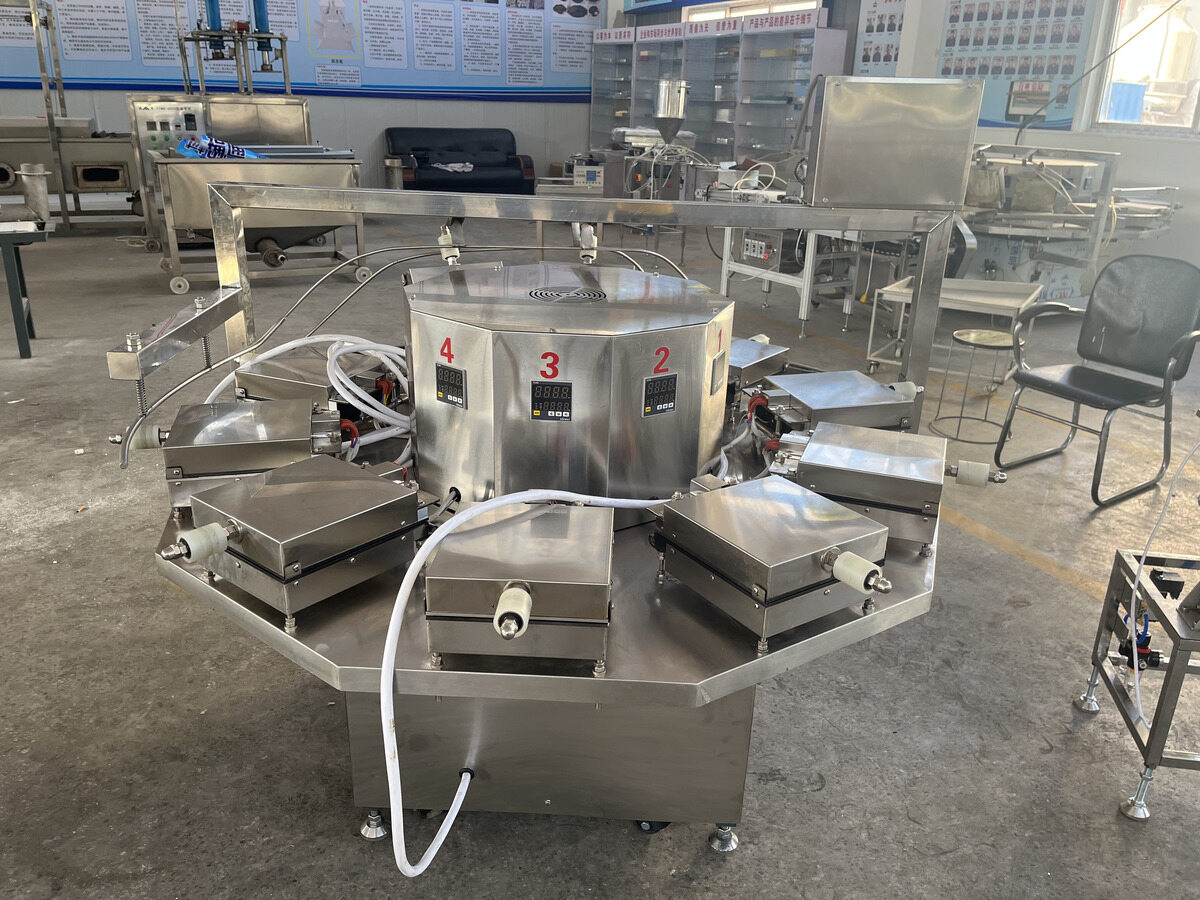

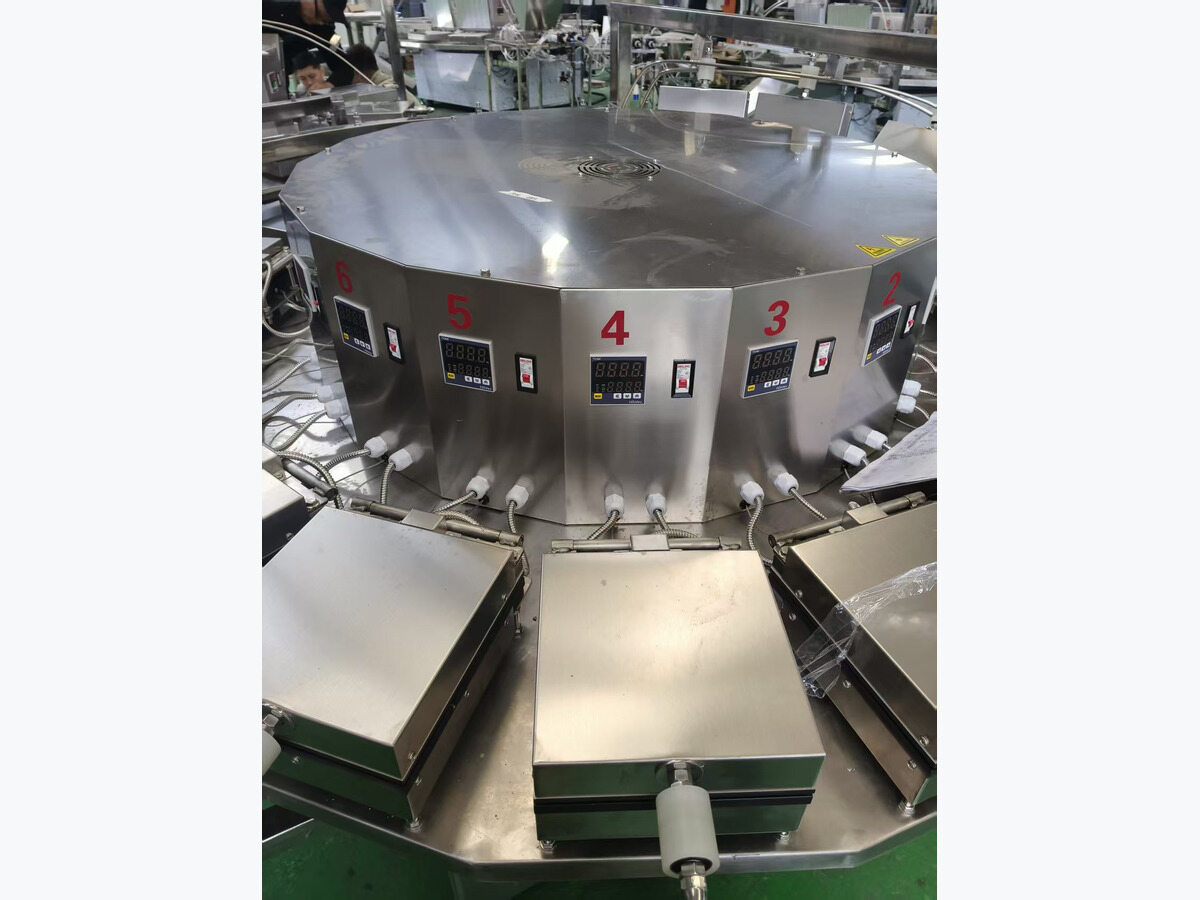

Rotary Baking Stations
The YN-DJ series is offered with 6, 8, 10, 12, 15 and 18 baking stations.
02
Coordinated Baking Cycle
Batter depositing, mould movement, baking and plate rotation are coordinated by the machine.
03

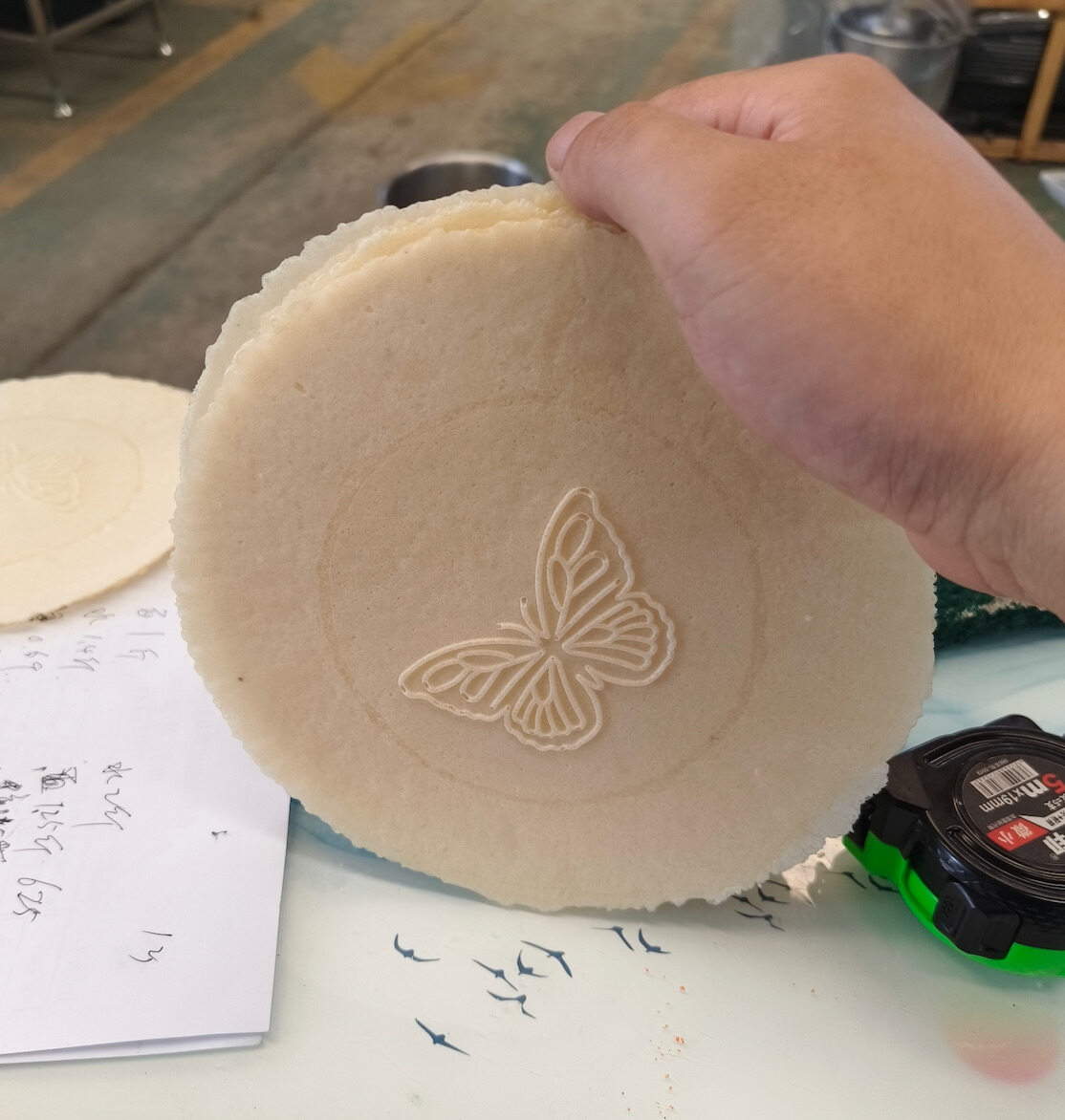

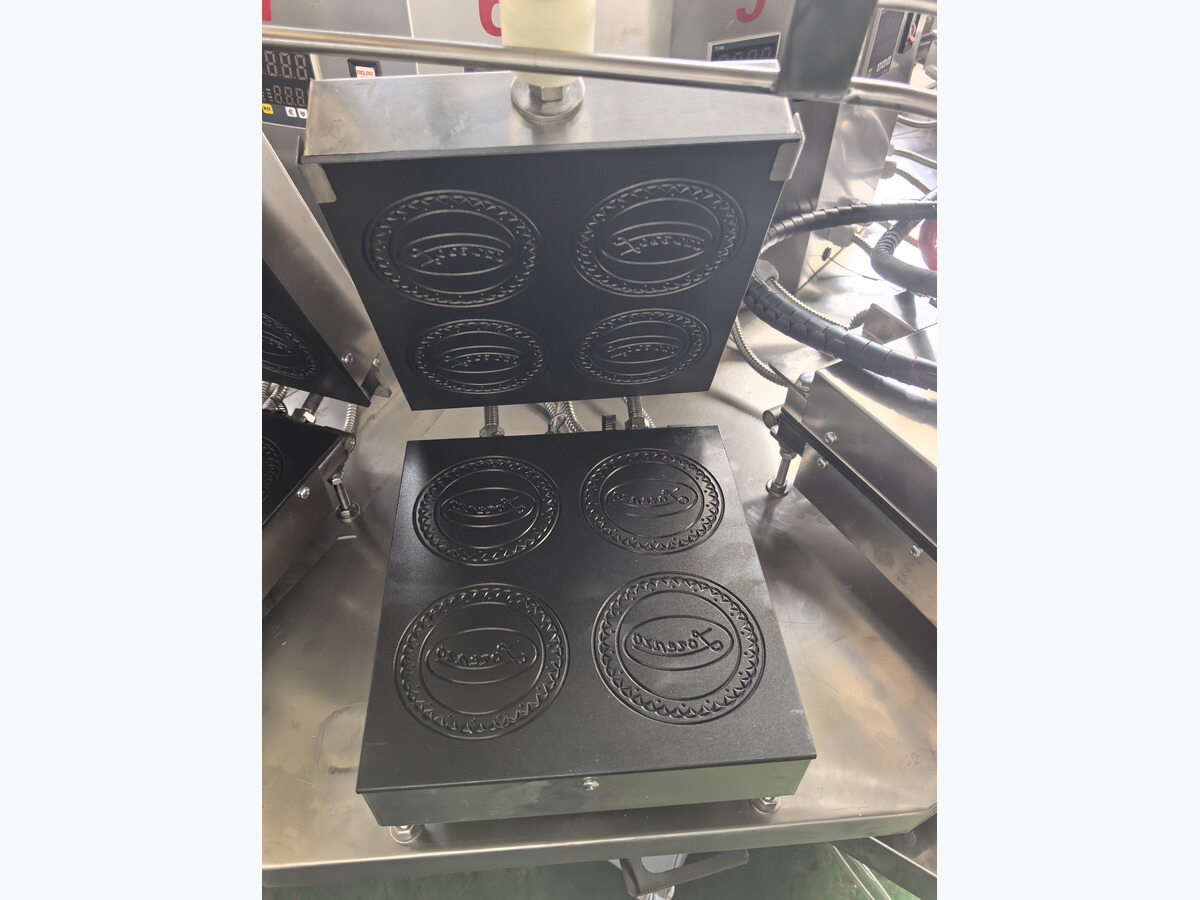

Patterned Baking Plates
Listed panel size is 24 × 26 cm; plate patterns can be discussed for the ordered configuration.
04

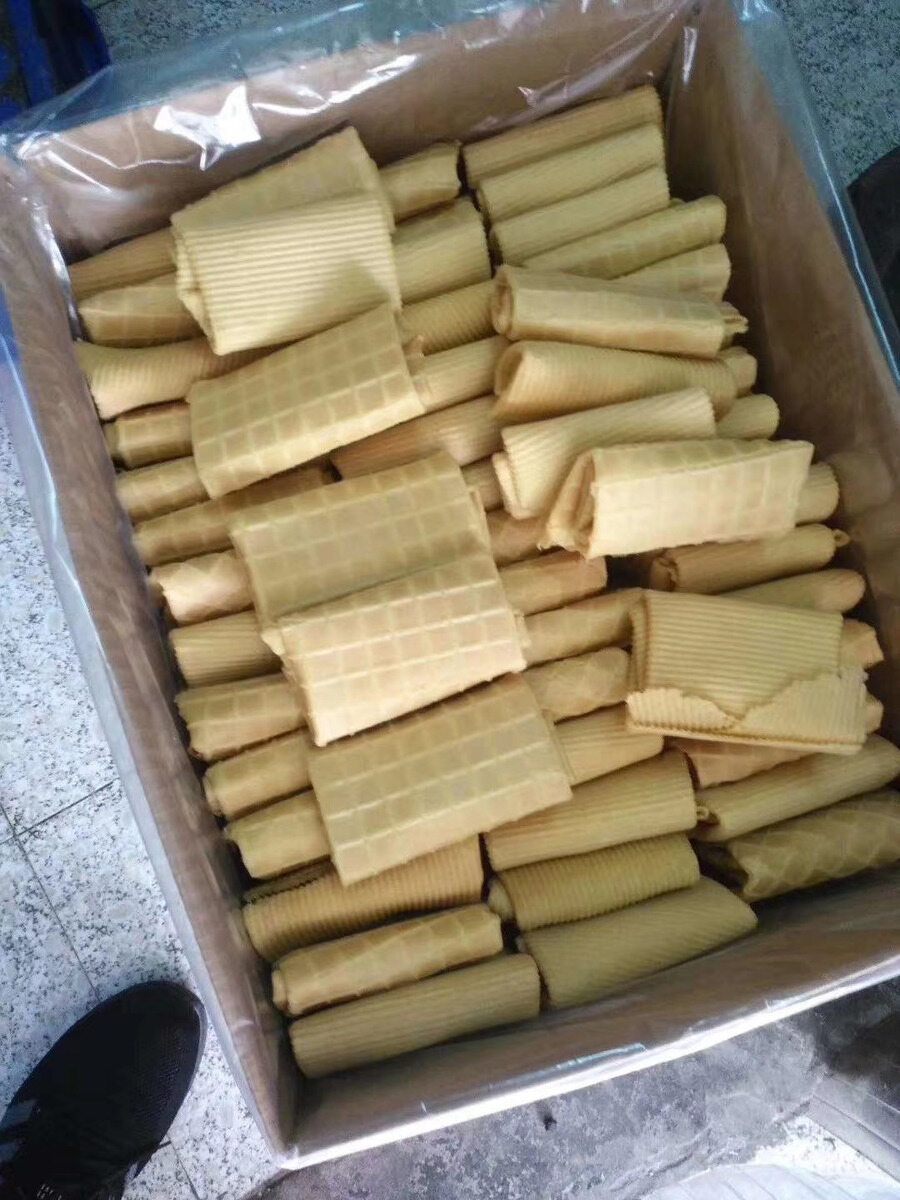

Sheet Baking Only
The machine bakes wafer sheets; rolling or folding is a separate downstream operation.
Technical Parameters
| Model | Voltage | Power | Listed output | Panel size | Listed weight | Machine dimensions |
|---|---|---|---|---|---|---|
| YN-DJ6 | 380 V | 13.5 kW | 300 pieces/hour | 24 × 26 cm | 340 kg | 130 × 130 × 135 cm |
| YN-DJ8 | 380 V | 13.5 kW | 400 pieces/hour | 24 × 26 cm | 430 kg | 160 × 160 × 135 cm |
| YN-DJ10 | 380 V | 25 kW | 500 pieces/hour | 24 × 26 cm | 480 kg | 170 × 170 × 135 cm |
| YN-DJ12 | 380 V | 25 kW | 700 pieces/hour | 24 × 26 cm | 560 kg | 185 × 185 × 135 cm |
| YN-DJ15 | 380 V | 27 kW | 900 pieces/hour | 24 × 26 cm | 600 kg | 196 × 196 × 145 cm |
| YN-DJ18 | 380 V | 40 kW | 1100 pieces/hour | 24 × 26 cm | 650 kg | 220 × 220 × 145 cm |
Listed output relates to the regular wafer-sheet configuration and depends on recipe and operating conditions. The figures do not represent finished rolled-wafer output. Custom mould products need separately agreed specifications. Confirm net or gross weight and electrical phase requirements for ordering.
FAQ
No. It bakes wafer sheets; rolling or folding is a separate downstream operation, and finished rolled wafers in the photographs illustrate downstream products.
Request a Quote
Send your wafer-sheet sample, required pattern, sheet dimensions, target output, rolling method and electrical supply. We will review the YN-DJ baking configuration and any separate downstream equipment.
