Fruit & Vegetable Processing Equipment · Juicing & Pulping Equipment
Hydraulic Fruit & Vegetable Press
Separate liquid from prepared fruit, vegetables and other suitable materials using a hydraulic pressing system. The YN-YZ series offers listed basket volumes from 30 L to 500 L.
Applications
For juice pressing and dewatering of prepared fruit, vegetable pulp and suitable fibrous material. Applications can include apples, grapes, pears and ginger, subject to preparation and product trials. Hard or large pieces may need separate pre-crushing. This equipment is not offered here as a dedicated oil press.
How It Works
- Prepare the material and load it into a suitable filter bag inside the basket.

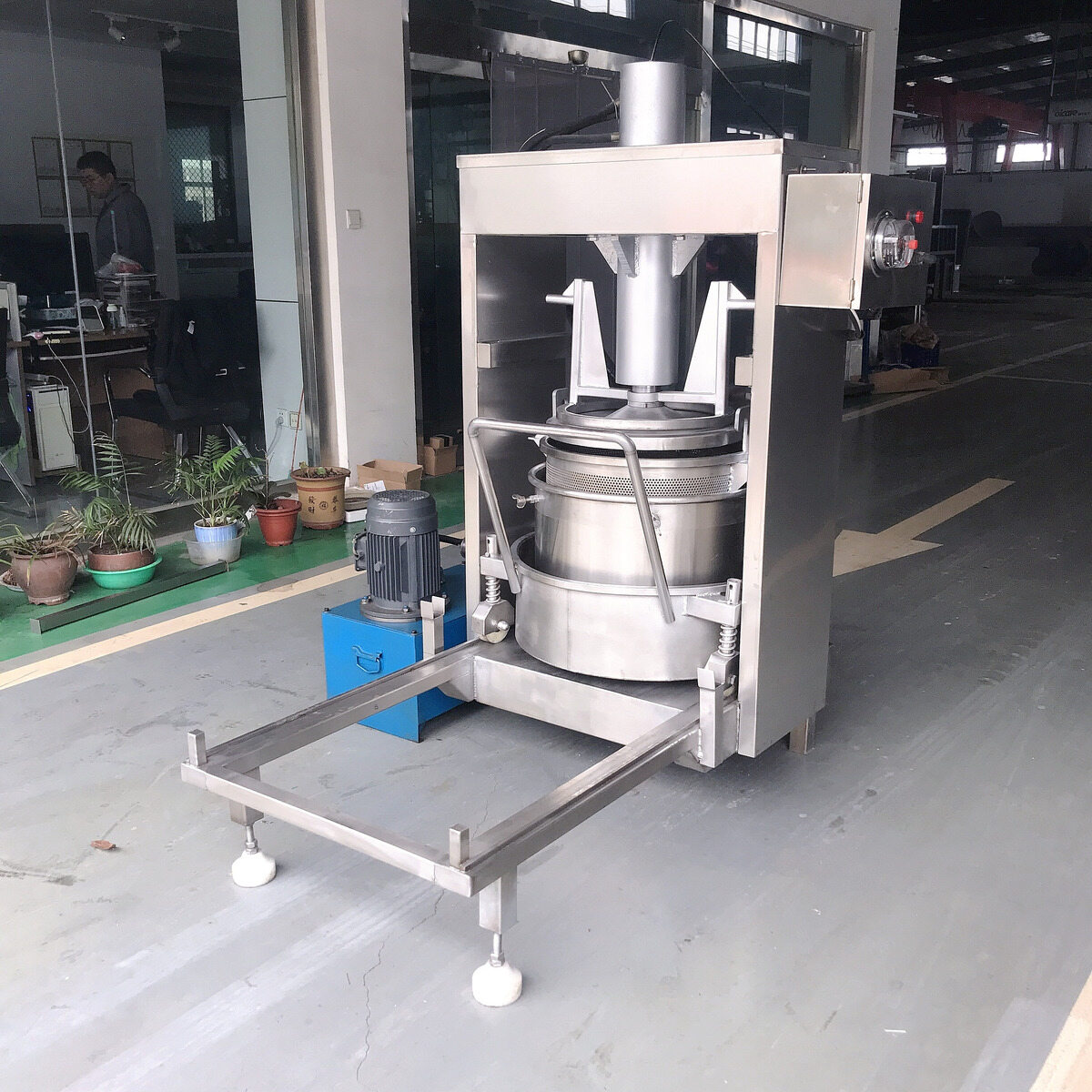

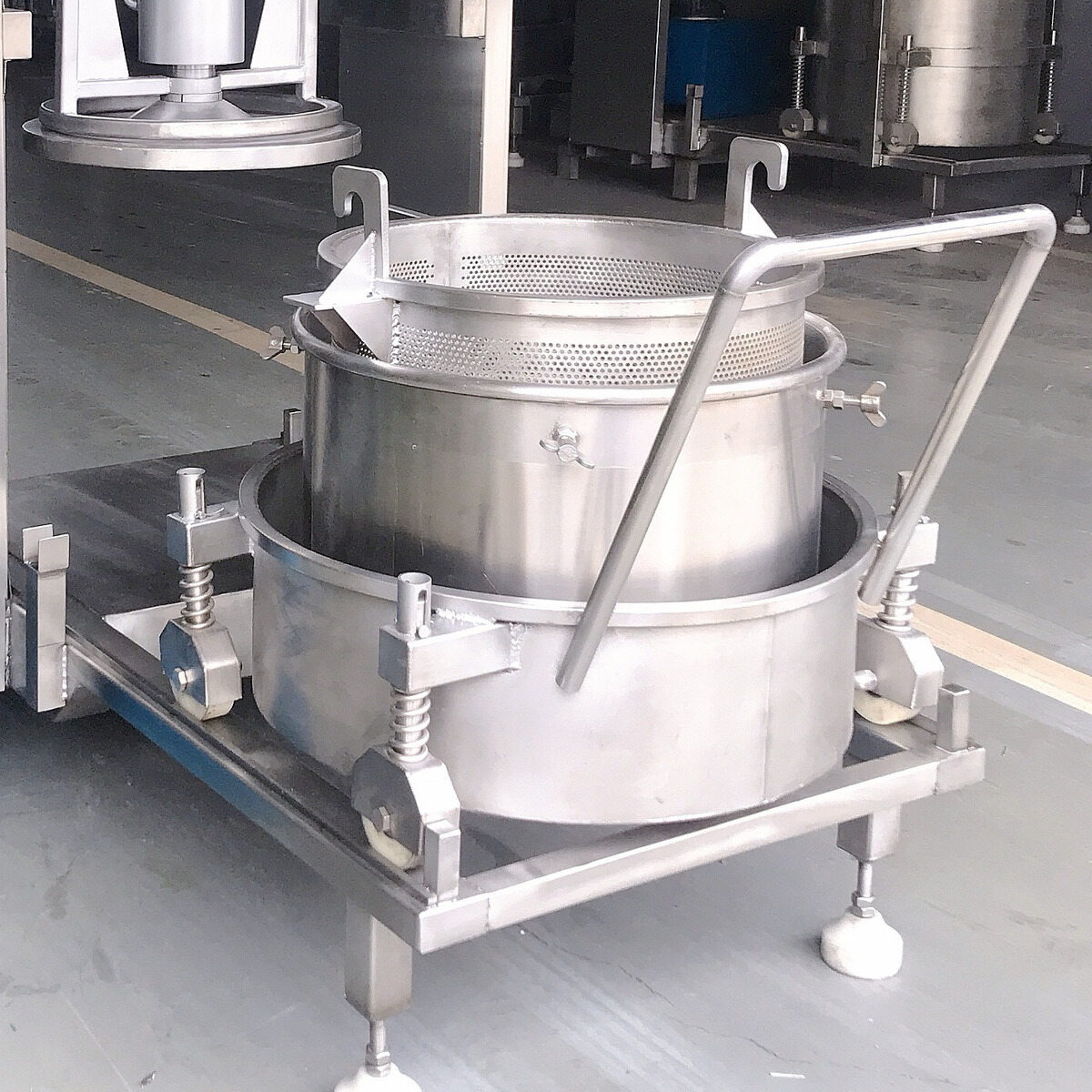

- Position the basket beneath the pressing plate.
- Apply hydraulic pressing force to separate the liquid.
- Collect the liquid and remove the pressed solids before cleaning the contact components.
Key Features
01
Hydraulic Pressing Force
Listed pressing tonnage ranges from 8 T to 50 T across the YN-YZ series.
02
Six Basket Volumes
30 L, 50 L, 100 L, 200 L, 300 L and 500 L baskets are listed for different batch sizes.
03

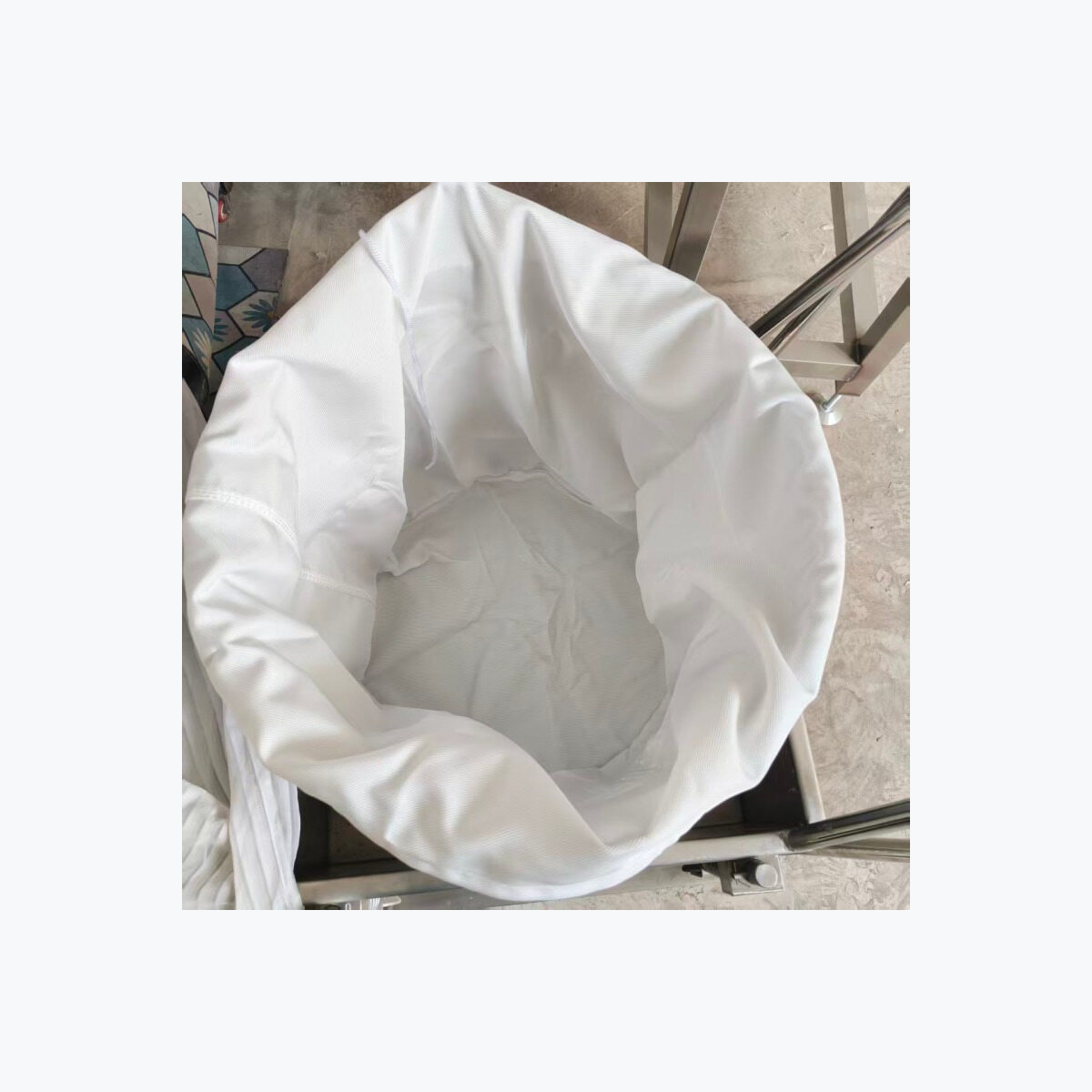

Filter Bag Loading
Prepared material is loaded into a filter bag inside the basket to support liquid separation and solids removal.
04

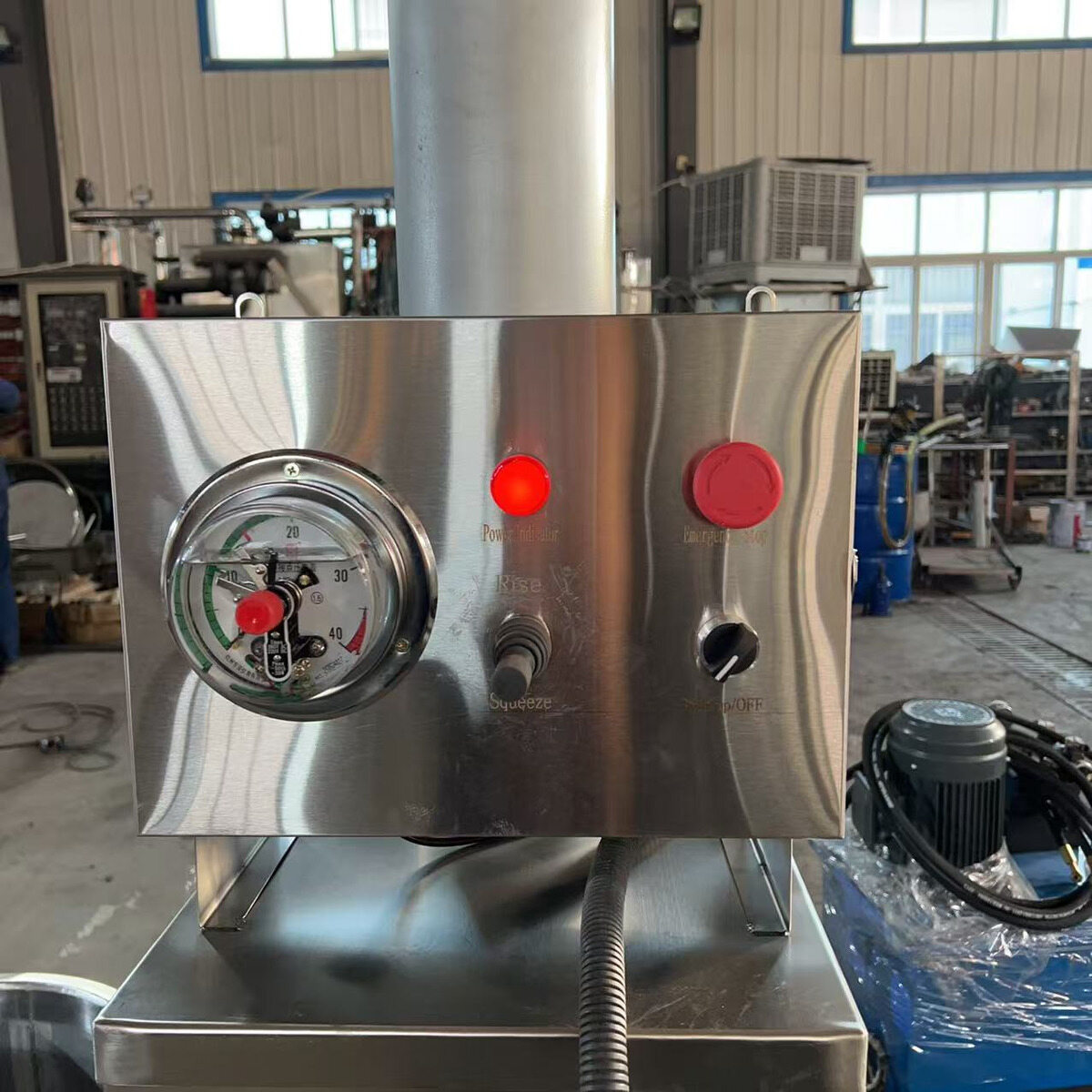

Simple Control Panel
Buttons and a gauge on the control panel are used to run the pressing cycle.
Technical Parameters
| Model | Basket volume | Power | Pressing tonnage | Machine dimensions | Listed weight |
|---|---|---|---|---|---|
| YN-YZ30L | 30 L | 1.5 kW | 8 T | 0.8 × 0.8 × 1.96 m | 160 kg |
| YN-YZ50L | 50 L | 3 kW | 30 T | 1.35 × 0.64 × 1.76 m | 300 kg |
| YN-YZ100L | 100 L | 3 kW | 30 T | 1.35 × 0.75 × 1.8 m | 450 kg |
| YN-YZ200L | 200 L | 4 kW | 50 T | 1.85 × 0.89 × 2.2 m | 600 kg |
| YN-YZ300L | 300 L | 4 kW | 50 T | 1.75 × 0.96 × 2.24 m | 650 kg |
| YN-YZ500L | 500 L | 4 kW | 50 T | 2.1 × 1.2 × 2.6 m | 800 kg |
T denotes the supplier's pressing-tonnage specification, not hydraulic pressure in MPa. Basket volume is not juice output. The source does not identify the listed weights as net or gross weights; confirm shipping and installation data for the selected configuration.
FAQ
This equipment is presented for juice pressing and dewatering of prepared fruit, vegetable pulp and suitable fibrous material. It is not offered here as a dedicated oil press.
Request a Quote
Tell us your material, preparation method, expected batch size and liquid-separation objective. We will review basket volume, pressing tonnage, filter bag and control requirements.
