Ice Cream Cone Baking Machine
Bake moulded ice cream cones and wafer containers using the DST series. Choose a configuration for 2 to 60 products per batch, with manual mould opening and closing.
Applications
For ice cream cones and wafer containers in the shape and size specified for the order. Each machine uses fixed moulds for one shape and size; the moulds are not interchangeable. Confirm your required product before ordering.
How It Works
- Preheat the moulds and set the baking conditions for the batter.
- Pour batter into the lower mould.
- Close the mould manually and bake.
- Open the mould manually, remove the formed products and allow them to cool.
Key Features
01
Seven Batch Configurations
DST models are listed for 2, 4, 10, 24, 32, 40 and 60 products per batch.
02
Manual Mould Handling
Mould opening and closing are manual on all listed DST models.
03
Short Baking Cycle
The listed baking cycle is 1–2 minutes, excluding loading and unloading time.
04
Mould Shape to Be Agreed

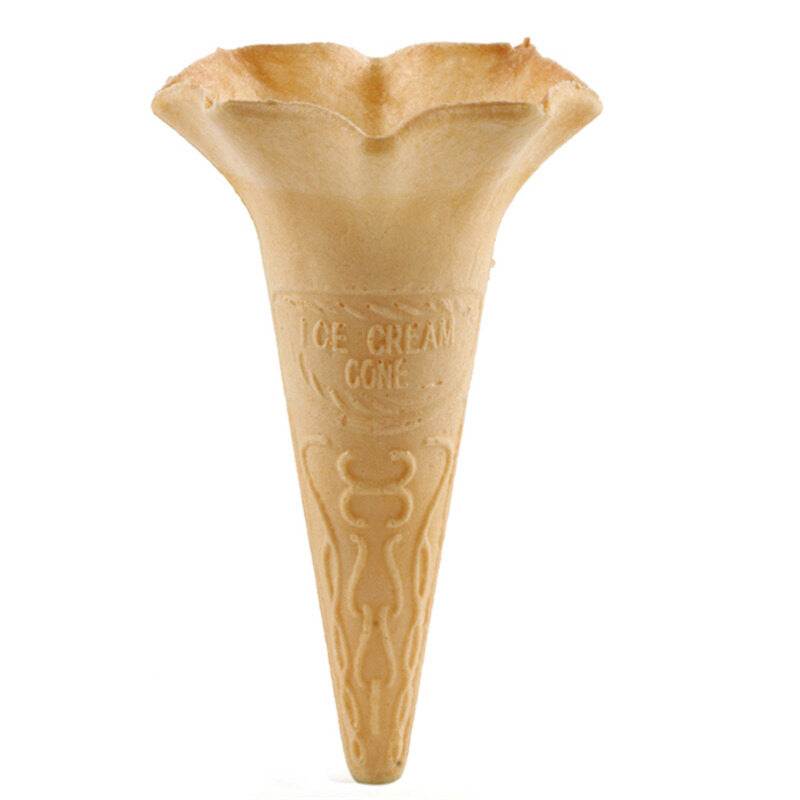

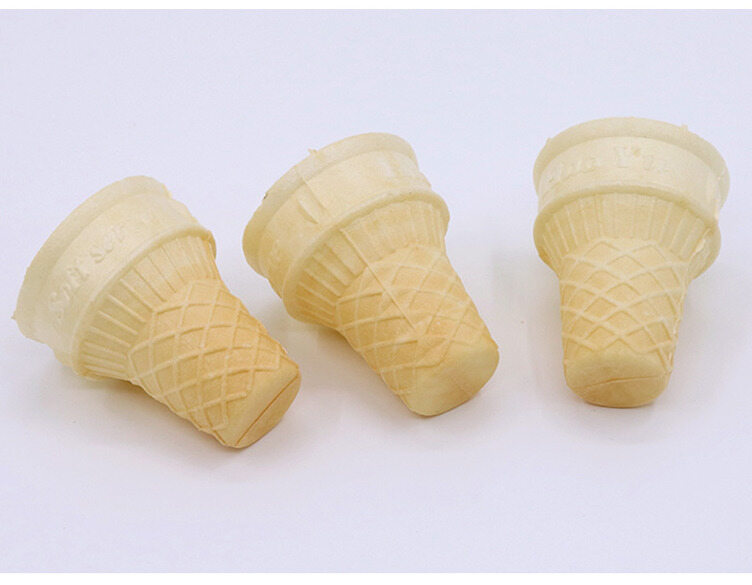

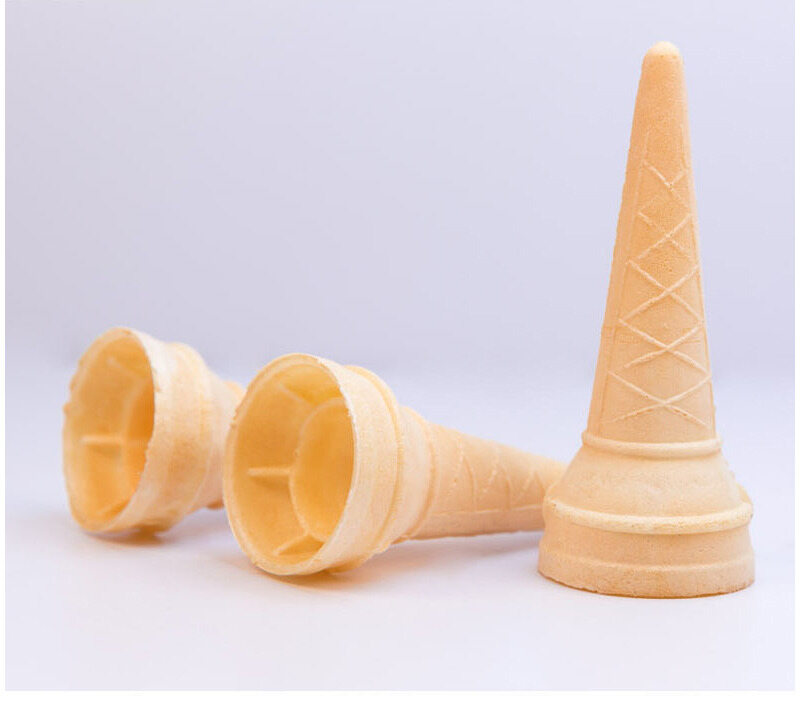

Cone, cup and bowl forms depend on the mould configuration confirmed for the order.
Technical Parameters
| Model | Products per batch | Listed output (pieces/hour) | Baking cycle | Installed power | Voltage |
|---|---|---|---|---|---|
| DST-60C | 60 | 2400–3000 | 1–2 min | 21 kW | 380 V |
| DST-40C | 40 | 1200–1400 | 1–2 min | 18 kW | 380 V |
| DST-32C | 32 | 800–1000 | 1–2 min | 15 kW | 220 V / 380 V |
| DST-24C | 24 | 600–800 | 1–2 min | 12 kW | 220 V / 380 V |
| DST-10 | 10 | 250–300 | 1–2 min | 5 kW | 220 V |
| DST-4 | 4 | 100–120 | 1–2 min | 3.6 kW | 220 V |
| DST-2 | 2 | 50–60 | 1–2 min | 1.8 kW | 220 V |
| Model | Machine dimensions | Packing dimensions | Net weight | Gross weight |
|---|---|---|---|---|
| DST-60C | Available on request | 1240 × 1180 × 1660 mm | 1046 kg | 1130 kg |
| DST-40C | 1080 × 890 × 1465 mm | 1120 × 930 × 1620 mm | 660 kg | 720 kg |
| DST-32C | 880 × 880 × 1380 mm | 900 × 1000 × 1540 mm | 450 kg | 560 kg |
| DST-24C | 730 × 800 × 1370 mm | 890 × 820 × 1500 mm | 350 kg | 400 kg |
| DST-10 | 760 × 600 × 1050 mm | 970 × 680 × 1200 mm | 200 kg | 230 kg |
| DST-4 | 530 × 430 × 700 mm | 570 × 520 × 770 mm | 80 kg | 95 kg |
| DST-2 | 450 × 350 × 700 mm | 500 × 400 × 770 mm | 45 kg | 54 kg |
Opening and closing are manual for all listed models. Output depends on the recipe, thickness and handling; the baking cycle is not a complete loading-to-unloading cycle. Voltage choices do not imply automatic dual-voltage switching. Confirm supply details before ordering.
FAQ
No. Opening and closing are manual for all listed DST models.
Request a Quote
Share the cone or wafer-container sample, dimensions, intended configuration, required output and electrical supply. We will review the mould and DST model before quotation.
