Dough, Bakery & Flatbread Equipment · Bakery & Baking Equipment

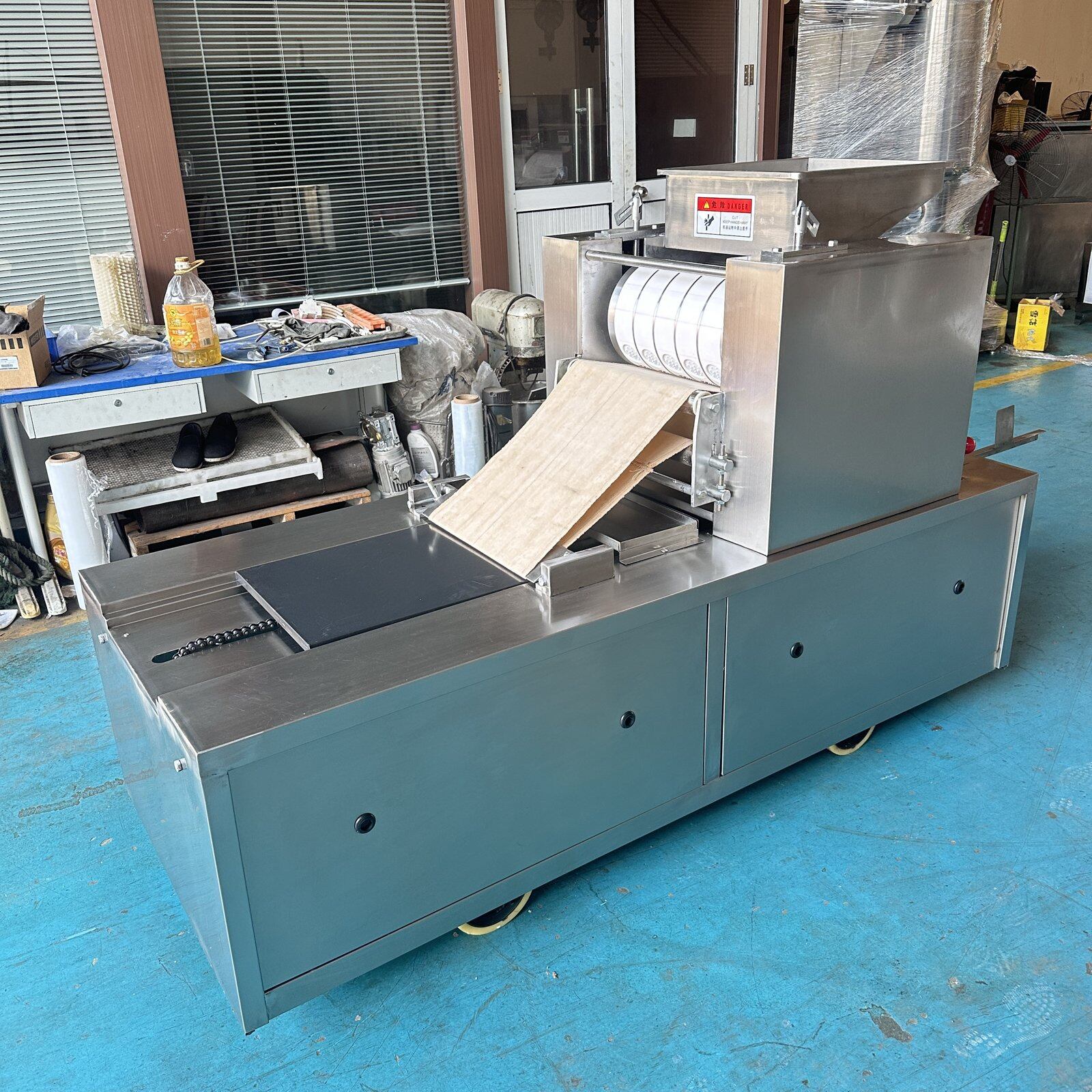

Rotary Biscuit Forming Machine
Form shaped biscuit and cookie dough pieces with a roller-based forming system. Dough is pressed into patterned molds and released onto a conveyor belt for subsequent baking in a separate oven.
Suitable for: molded biscuits, shortbread-style cookies and other suitable low-elasticity dough recipes.
Applications

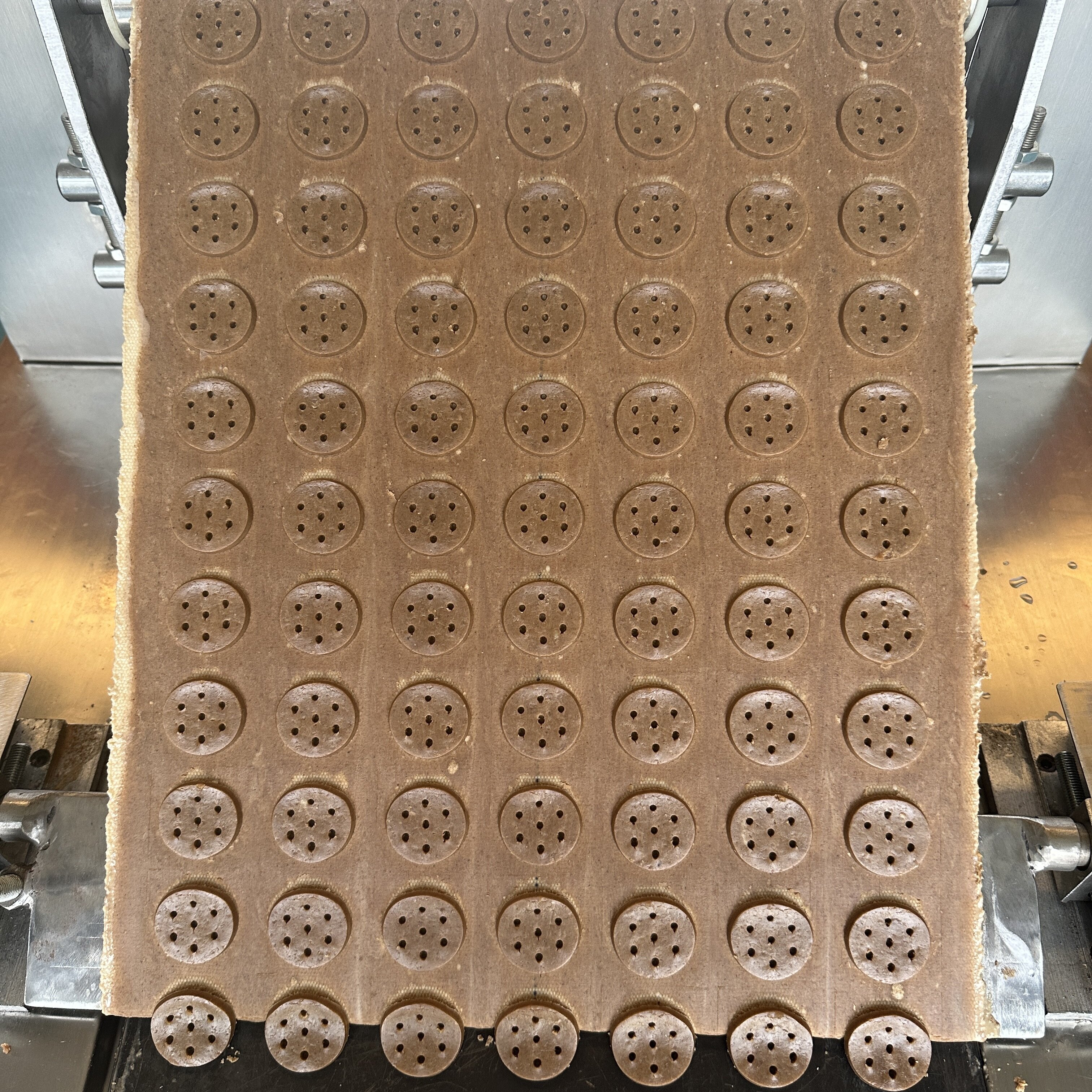

Molded biscuits and cookies
Form repeatable dough pieces before baking.

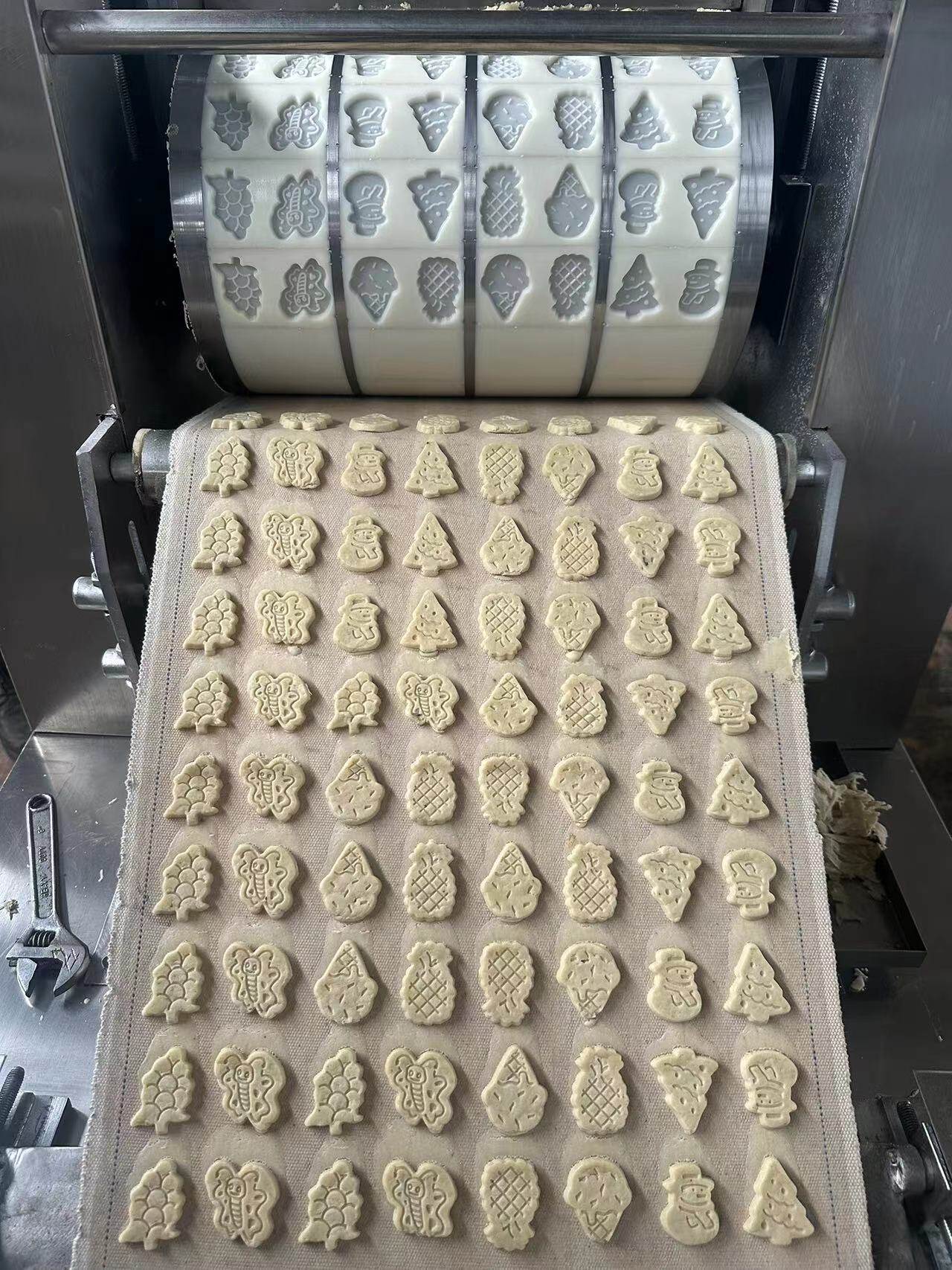

Patterned cookie shapes
Use an appropriately specified molding roller for selected designs.
Shortbread-style dough
Consider recipes with the consistency recommended for roller forming.
Specialty shapes
Shape options depend on the actual mold supplied for the order.
How the Rotary Biscuit Forming Machine Works

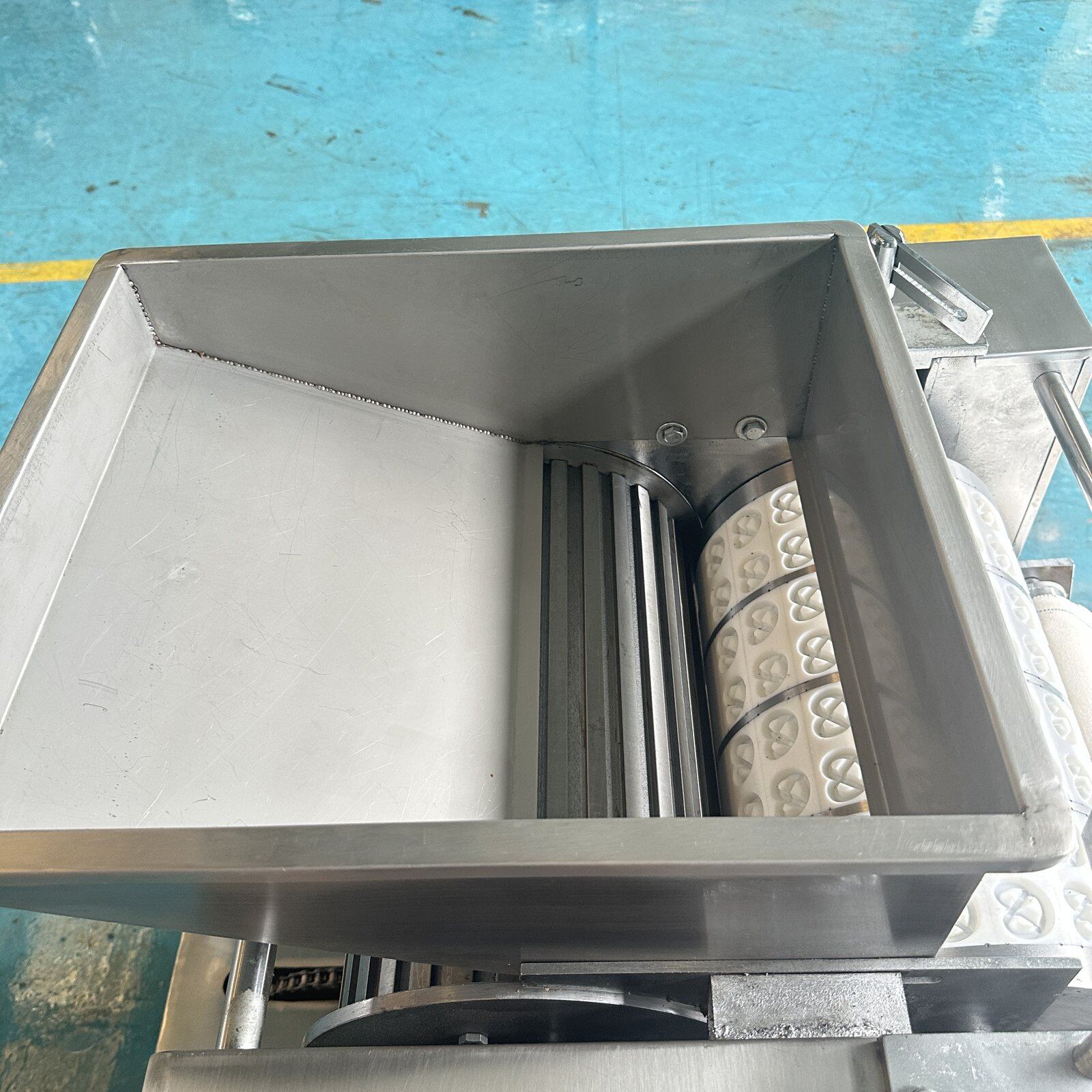

Prepared dough enters the hopper and passes through the feeding and patterned molding rollers. Formed pieces are released onto the conveyor and transferred to trays or a downstream oven. This machine performs forming; it does not bake the biscuits.
Key Features
01

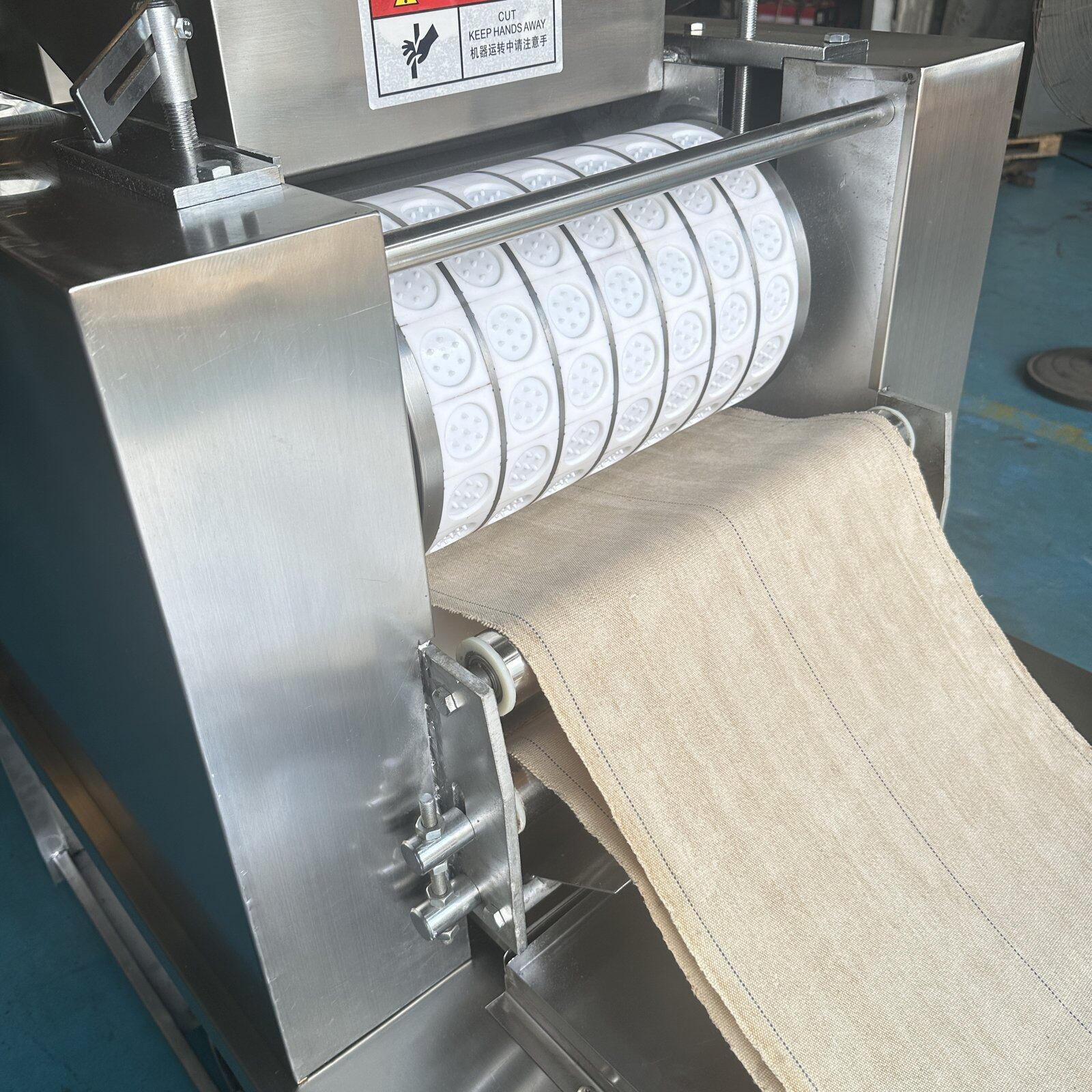

Pattern Roller Forming
The molding roller defines the shape and surface pattern of the dough pieces.
02

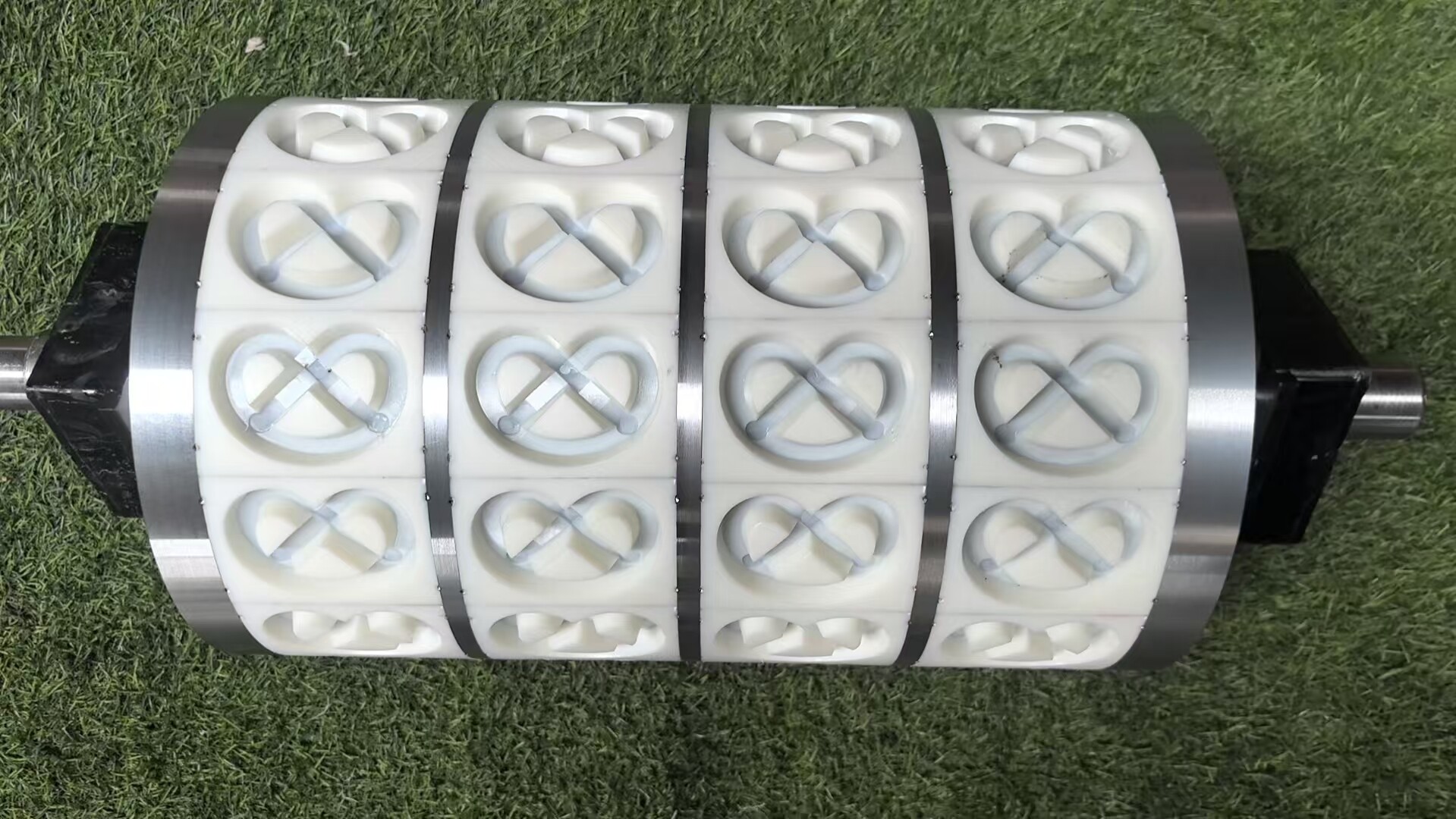

Roller Options
Alternative patterns can be supplied with suitable rollers; compatibility is confirmed when configuring the machine.
03
Conveyor Release
A conveyor belt carries the molded pieces out of the forming area.
04
Adjustable Running Speed
Variable-frequency control allows the roller and conveyor operating speeds to be adjusted. The available range depends on the selected machine configuration.
Technical Parameters
| Model | Power | Production Capacity | Machine Size (mm) |
|---|---|---|---|
| YN-BG400 | 1.5 kW | 80–180 kg/h | 2200 × 850 × 1350 |
| YN-BG600 | 3 kW | 180–250 kg/h | 2200 × 1150 × 1350 |
| YN-BG800 | 5.5 kW | 250–300 kg/h | 2800 × 1400 × 1450 |
Weight: YN-BG400: 500 kg; YN-BG800: 1200 kg.
Actual output depends on dough consistency, product shape and operating conditions. Confirm dimensions and weights when ordering.
FAQ
No. It forms dough pieces; an oven is needed for baking.
Need a Biscuit Forming Machine for Your Recipe?
Tell us your biscuit size, desired pattern, dough type and target output. We will help you review the machine and mold configuration.
