Tart Shell Making Machine
Prepare tart shells with the rotary YN-TK series. PLC touch-screen control and customised mould shapes support tart-shell production requirements across six rotary configurations.
Applications

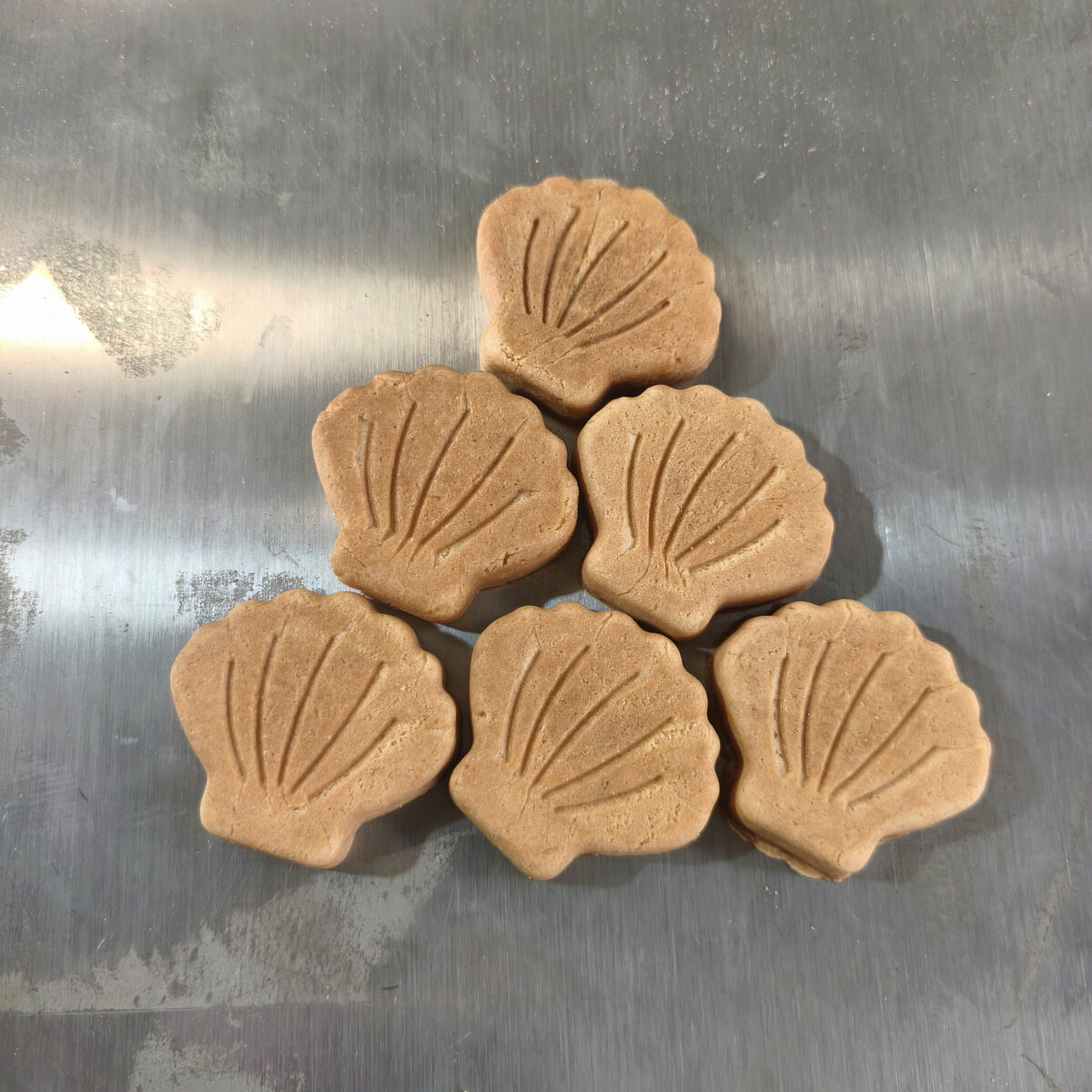

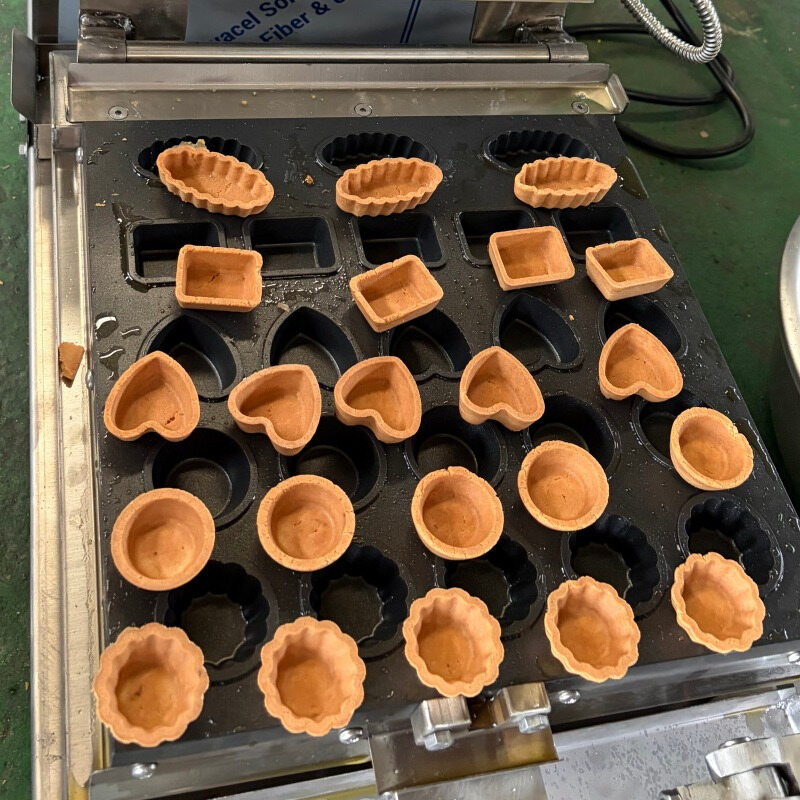

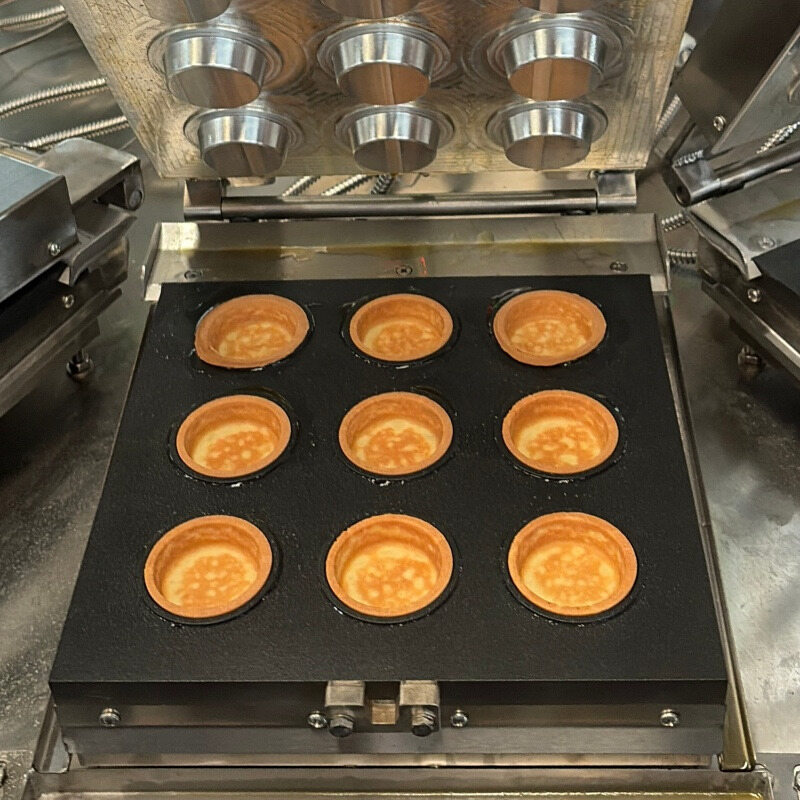

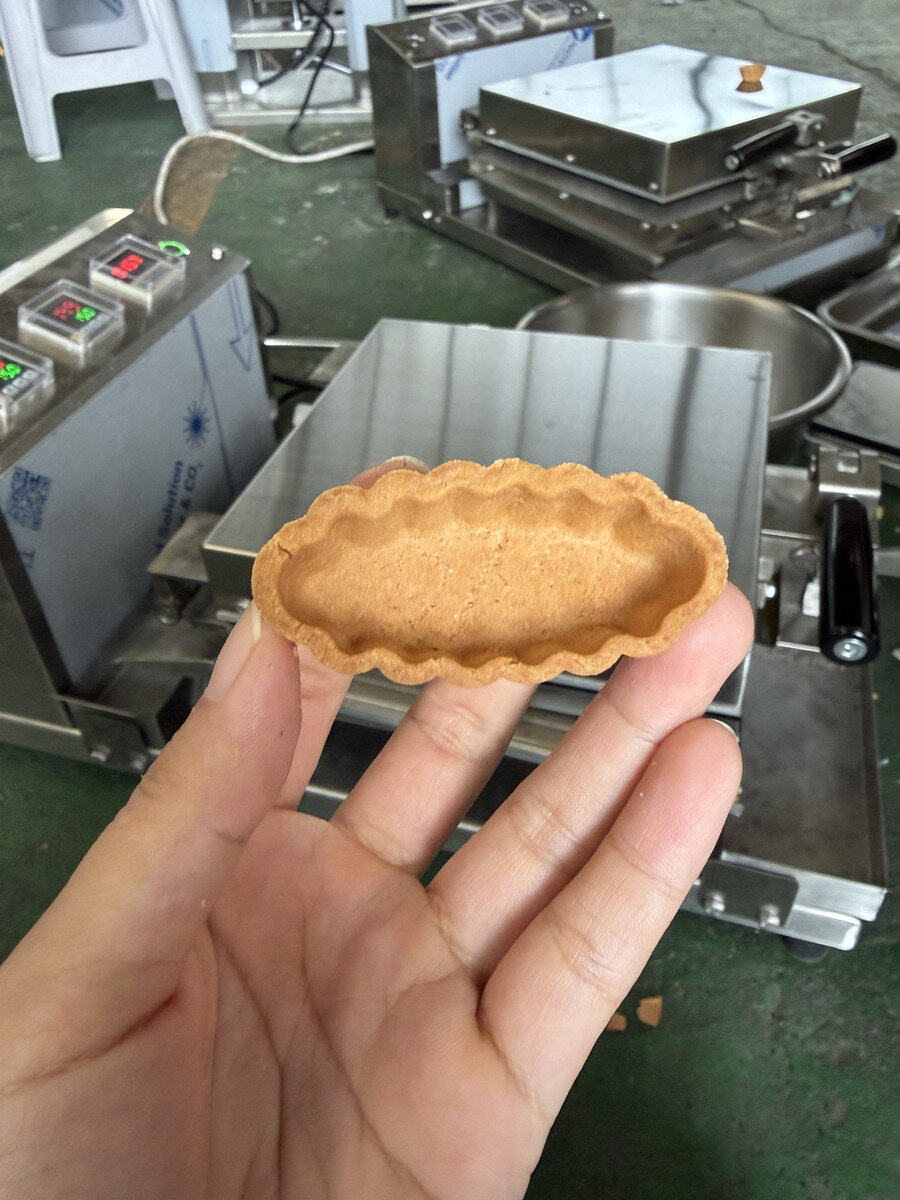

For tart-shell preparation in bakeries, dessert production and food factories. Mould shapes can include round, rectangular, square, oval, heart, shell and walnut forms, with other shapes considered to customer requirements. Final shell size and recipe should be agreed for the selected mould.
How It Works
- Prepare and portion the dough separately.
- Load the dough into the selected rotary mould arrangement.
- Set the heating time and rotation settings through the PLC touch screen, then form and bake the shells.
- Remove the shells and transfer them to subsequent filling or packaging processes as required.
Key Features
01

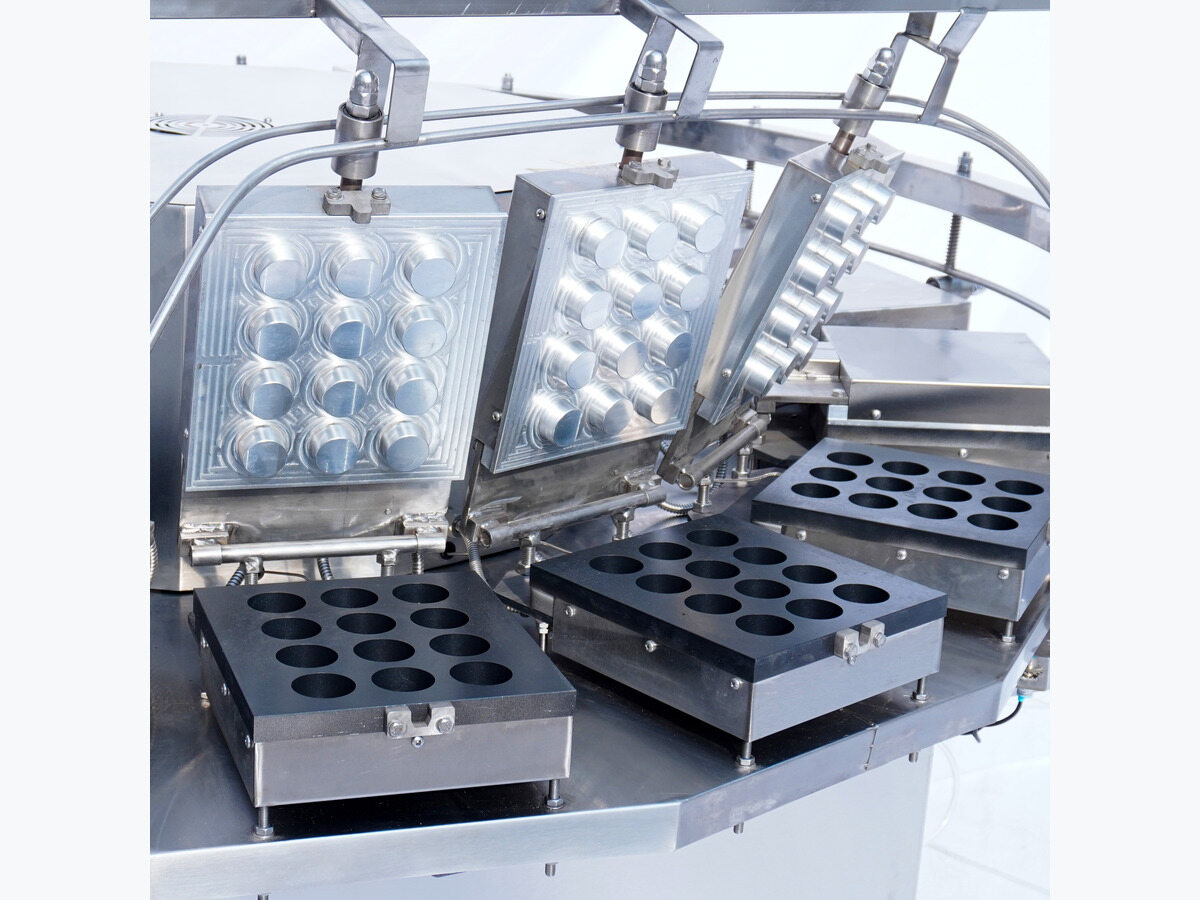

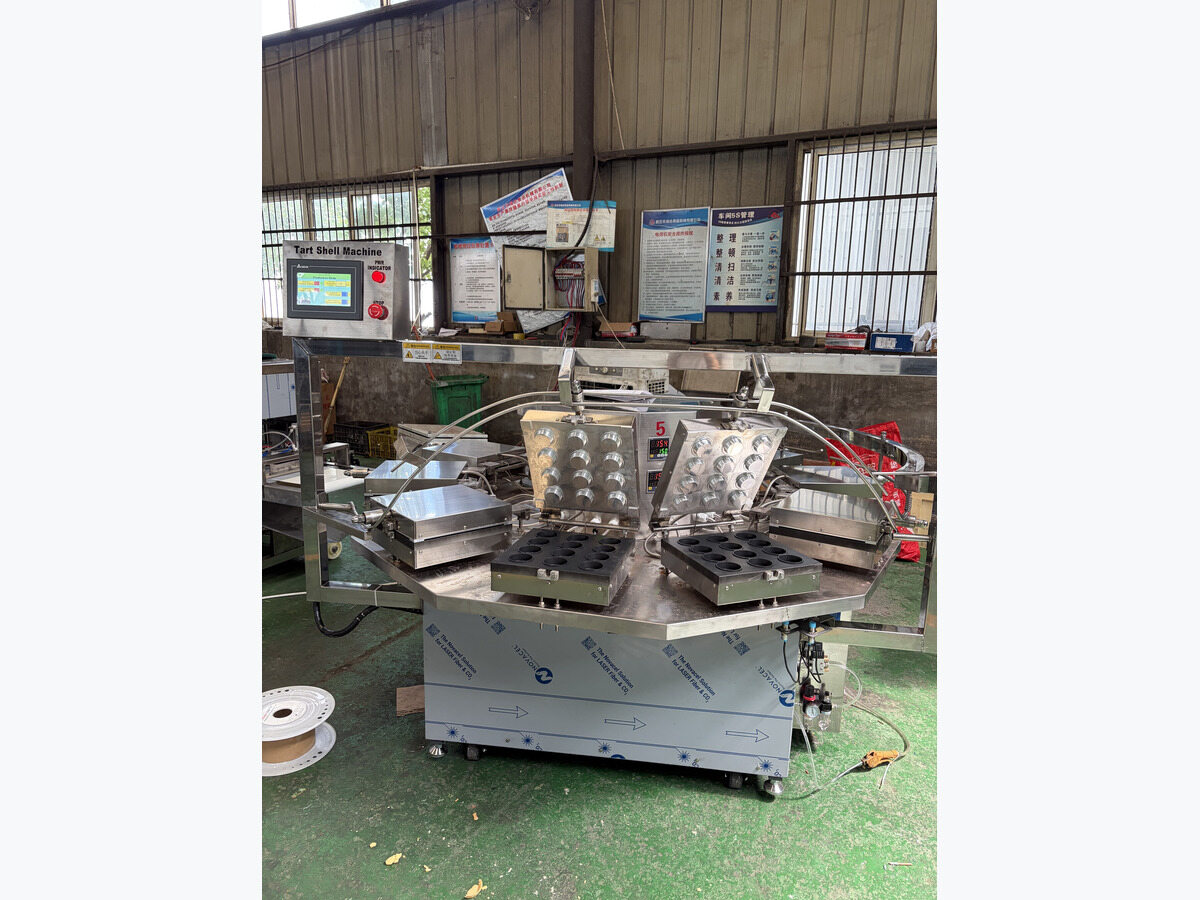

Rotary Mould Arrangement
The YN-TK series is offered with 6, 8, 10, 12, 15 or 18 moulds.
02
PLC Touch-Screen Control
Heating time and rotation settings are handled through a PLC touch screen.
03

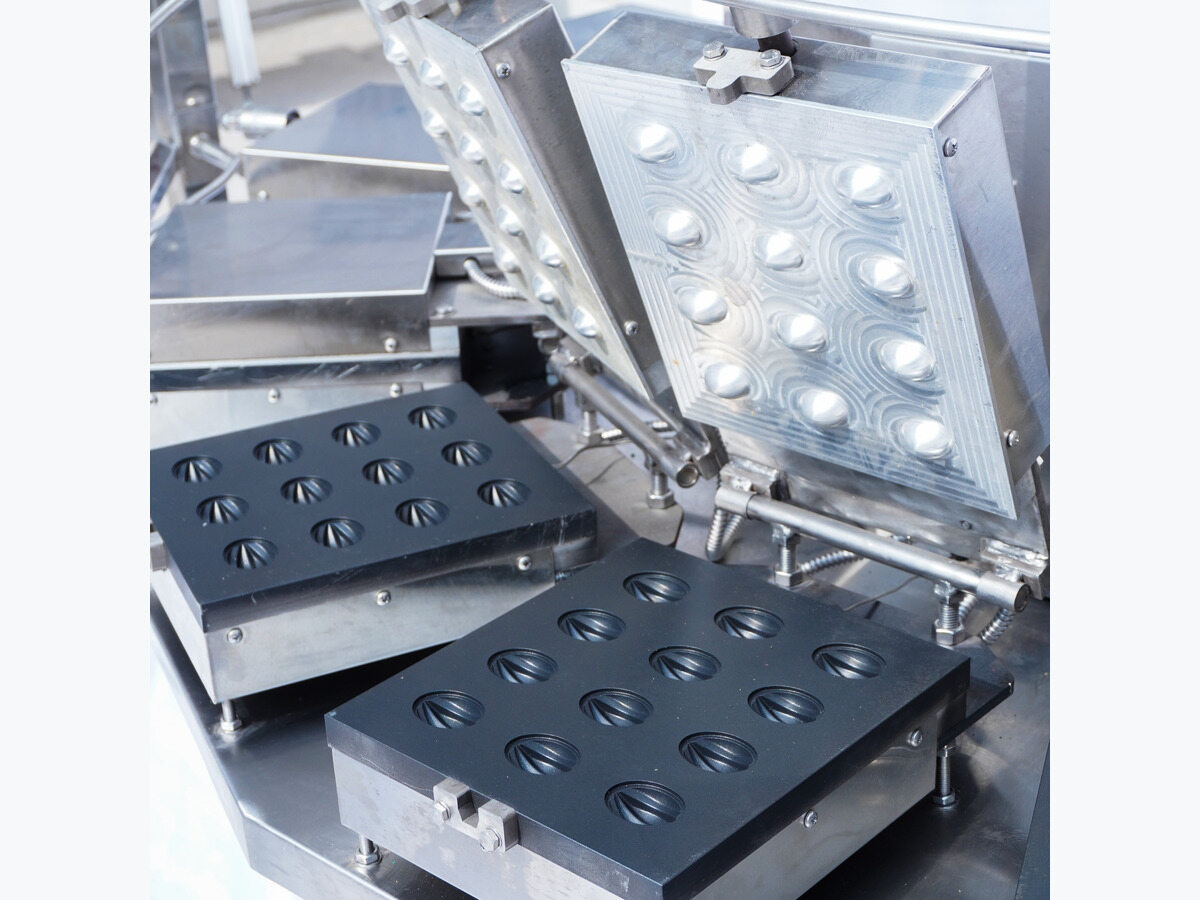

Customised Mould Shapes
Round, rectangular, square, oval, heart, shell and walnut shapes are listed, with other shapes considered to requirements.
04
Forming and Baking in One Stage
The machine forms and bakes tart shells; filling and packaging remain separate downstream processes.
Technical Parameters
| Model | Mould quantity |
|---|---|
| YN-TK6 | 6 |
| YN-TK8 | 8 |
| YN-TK10 | 10 |
| YN-TK12 | 12 |
| YN-TK15 | 15 |
| YN-TK18 | 18 |
| Item | Specification |
|---|---|
| Machine type | Rotary series |
| Control | PLC touch screen |
| Electrical supply | 380 V, three-phase; customisation to customer requirements |
| Mould-plate sizes | 240 × 260 mm; 300 × 300 mm; custom sizes |
| Mould shapes | Round, rectangular, square, oval, heart, shell, walnut and custom shapes |
| Capacity | Varies with the customer's product dimensions and configuration |
The mould quantity is not a per-cycle shell count. The number of cavities and output depend on the agreed mould design. Overall machine dimensions are not specified here.
FAQ
The mould quantity (6 to 18) is not a per-cycle shell count. Cavities and output depend on the agreed mould design.
Request a Quote
Share your tart-shell sample or drawing, target dimensions, preferred mould quantity, required output and electrical supply. We will review the rotary configuration and mould requirements.
